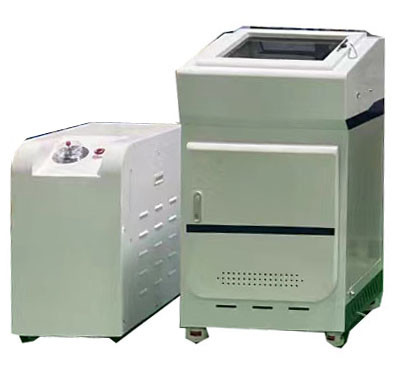

PVC PPR PE Plastic Pipe Hydrostatic Pressure Testing Equipment
Pro
Ⅰ. Summary:
The PVC PPR PE Plastic Pipe Hydrostatic Pressure Testing Equipment
is used to maintain the pipe or pipe fittings in a certain pressure
range for long-term internal pressure test, in the test pipe or
pipe fittings ruptured or completed automatically stop, and can
save the pressure curve and print the test report. In terms of
control: Fill pressure and pressure relief by filling pressure and
discharge pressure solenoid valve open to execute, steady pressure
mainly through the control of filling pressure and discharge
pressure solenoid valve point move open to achieve the effect of
precise control, this machine has the automatic constant voltage,
electric pressure relief, cleaning, and the function of automatic
calibration, the equipment is imported from the other
electromagnetic valve, unique sealing structure, when the water
clean, To ensure the sealing and durability of the solenoid valve,
is a kind of economic and practical, functional variety, high
degree of automation testing machine. The instrument is widely used
in various plastic pipe internal pressure test, suitable for
building materials industry, pipe production units, national
testing departments and scientific research units.
Ⅱ. System Feature:
1. Industrial chip control, direct control.
2. The machine and "precision pressure control unit" multi-channel
combination.
3. Each station is independently controlled without interference.
4. 3 stations, 6 stations, 15 stations, 20 stations and other
multiple stations can be selected, up to 60 stations and above.
There are hydrostatic test and blasting test.
5. Max. pressure: 10, 16, 20MPa ...
6. Pipe diameter range: Φ16 ~ 2000mm can customized.
7. A microcomputer controls a working position, and the pressure,
accuracy, time and other parameters can be set and controlled
independently when the computer is not working. Real-time display
of pressure, time and status (8 states: pressure rise, pressure
compensation, pressure release, overpressure, run, test end, leak,
burst), and store these test data. In case of overpressure, end of
test, leakage, burst and so on, it has sound and light alarm
function.
8. Power protection, test report storage/printout and other
functions. Automatically determine the valid time, invalid time,
remaining time and other parameters to prevent the invalid time and
invalid time in the evening, holidays and other time periods.
9. When powering off the device, ensure that the test is accurate
and successful. The instrument has reasonable structure, stable
performance, convenient operation and intuitive display.
10. Rich software interface (multi-language environment, to meet
customers in different countries and regions.
Ⅲ. Meet standards:
ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479.
Ⅳ. Technical data:
| Model | XGY-10C |
| Max.pressure | 10MPa |
| Test stations | 3, 5, 10, 15, 20, 25, 30, 50 can customized |
| Control mode | computer control |
| Data preservation | Each station has power off data protection function, boot can be
restored |
| Time | timing time | 0~9999 h 59 min |
| Timing accuracy | ±0.1% |
| time resolution | 1s |
| Minimum Set Unit | min |
| Pressure | Pressure control range | 0.2~10MPa |
| Pressure indicator units | MPa,bar or PSI |
| Pressure control accuracy | -1%~ +2% |
| Constant Voltage Control Precision of Full Load Range | Within ±1% |
| Pressure display resolution | 0.001MPa,0.01bar or 1PSI |
| measuring range | 4%~100%FS |
| Allowable error limit for indication | Within 1% |
| Temperature | Control Range(with Refrigeration system) | 15-95℃ |
| Control accuracy | ±0.5℃ |
Ⅴ. Configuration:
1. Pressure control host;
2. Pressure station;
3. End caps;
4. Water tank;
5. Refrigeration system.
